MESA PC/104 PARALLEL AND MISC I/O CARDS


4I20 Power driver card

The 4I20 is a stackable PC/104 card with 24 open drain 350 mA outputs for solenoids, valves, relays, motors, incandescent lamps and other medium power DC loads. The 4I20 outputs are galvanically isolated from logic ground to avoid ground loops, as the total ground return current be as much as 8.4 amps. The isolation also allows the 4I20 to drive ground referred loads. The 4I20 has readback capability on all outputs to verify output switching, and allow unused outputs to be used as input bits. The output drivers on the 4I20 (TI TIPC6A259) have a built-in 800 mA current limit and are protected against short circuits and capacitive loads with a unique chopping current limit system. The outputs have built in 50V clamp diodes to allow driving inductive loads without external flyback diodes. The 4I20 output connector is a 50 pin header with I/O module compatible pinout (interleaved grounds), allowing the 4I20 to drive unbuffered OPTO-22 style I/O module racks. All outputs have optional (plug in) pullup resistors that can be powered from the isolated 5V power on the 4I20 or external power. The 4I20 input and output are organized as a 24 bit multiplexer and a 24 bit addressable latch. This allows simple addressing of single I/O bits. All 4I20 access is through a single 8 bit I/O port.

DATASHEET --- MANUAL---SUPPORT SOFTWARE


 4I22 timer/counter + parallel I/O card

The 4I22 is a stackable PC/104 card with nine, 16 bit counters and 24 digital I/O bits. A 10 MHz and a 25 MHz models are available. An on card 10 or 25 MHz trimmable crystal oscillator is provided as a time base. The 82C54 counters on the 4I22 may be used for event counting, frequency counting, period measurement, frequency generation, pulse width modulators, digital one shots, interrupt timers and many other timing and counting uses. Example programs and source code are provided to illustrate most of these 4I22 applications. Eight of the nine counters on the 4I22 have external clock, gate, and output connections. Counter clock source of these counters can be the external input or the on card time base The ninth counter is used as a optional 10 or 25 MHz time base prescaler for the other eight counters. Gate and output polarity can be jumper selected as active high or low. 24 general purpose I/O bits are provided by a 82C55 PIA. Pullup resistors on the parallel I/O simplify connection to contact closure, Opto-detector, and open collector inputs. Timer and digital I/O connectors are 50 pin headers with I/O module rack compatible pin-outs. This connector pin-out has all input and output signals interleaved with grounds to reduce crosstalk. The 4I22 is an 8 bit card, but uses the stack through 16 bit PC/104 card format to allow access to all of the AT bus interrupts. Two of the counters on the 4I22 can generate interrupts. The IRQ line selection is software programmable (no interrupt jumpers!)

DATASHEET --- MANUAL---SUPPORT SOFTWARE


4I24  72/96 bit parallel I/O cards

The MESA 4I24 series of cards are 96 or 72 bit parallel I/O interfaces implemented on the PC/104 bus. The 4I24 uses 4 (4I24, 4I24I) or 3 (4I24M) socketed 82C55 PIO chips to give for a total of 96 I/O bits (4I24, 4I24I) or 72 I/O bits (4I24M). 3.3K Pullup resistors are provided on all ports to simplify interfacing to contact closure, opto-isolators, etc. The 4I24 series includes three models with different I/O connectors. The standard 4I24 uses two 50 pin headers for I/O connections. The 50 pin connectors each have 48 I/O bits, ground, and power. The 4I24I uses four 26 pin headers with ISO standard pinout (24 I/O bits per 26 pin connector, pin 2 = GND, pin 26= 5V). The 4I24M has I/O module rack compatible pinouts with three 50 pin connectors each having 24 I/O bits with interleaved grounds. 5V power on the I/O connectors is fused on the 4I24. All 4I24 models use the 16 bit stack through type PC/104 bus architecture. Four layer circuit card construction is used to minimize radiated EMI and provide optimum ground and power integrity. All CMOS design keeps power consumption to a minimum.

DATASHEET --- MANUAL(4I24)---MANUAL(4I24I)---MANUAL(4I24M)

SUPPORT SOFTWARE


4I24H  High current 96 bit parallel I/O card

The MESA 4I24H is a 96 bit parallel I/O interface implemented on the PC/104 bus. The 4I24H is functionally the same as the 4I24 but has outputs capable of driving 24 mA. CPLD devices are used to emulate the 82C55s used on the 4I24. The CPLD support all mode 0 82C55 operations. 3K Pullup resistors are provided on all ports to simplify interfacing to contact closure, opto-isolators, etc. The standard 4I24H uses two 50 pin headers for I/O connections. The 50 pin connectors each have 48 I/O bits, ground, and power. Four layer circuit card construction is used to minimize radiated EMI and provide optimum ground and power integrity.

DATASHEET --- MANUAL(4I24H)---SUPPORT SOFTWARE


4I70 PC/104-PCI Remote bridge

  The 4I70 is a PCI to PCI Express or PCI express to PCI bridge on a PC/104-PCI card. Two 4I70 cards and a single lane Infiniband cable make complete remote PCI bridge system for the PC/104-PLUS bus. The 4I70 allows remote expansion of PC/104-PCI systems and solving problems with PC/104-PCI card stack mechanical constraints. The 4I70 can also allow data acquisition and wireless peripheral cards to be placed in ideal locations, which may be at some distance from the host CPU. The 4I70 also allows testing of PC/104-PCI cards without powering down the host. Normally 4I70 cards are used in pairs, one jumpered for forward bridge mode (PCI-Express to PCI) and one jumpered for reverse bridge mode (PCI to PCI Express). The two 4I70 cards connect via a single lane Infiniband cable and bridge a PC-104/PCI stack with the CPU to a remote stack that can support up to 4 bus master PC/104-PCI peripheral cards. The remote 4I70 can be up to 5 meters from the local 4I70. The 4I70 has a built in 3.3V power supply and can provide up to 2.5 Amps of 3.3V power to the remote peripheral stack so that only a single 5V power supply is required.


  DATASHEET --- MANUAL


4I73 PC/104-PCI Remote bridge

4I73 picture  The 4I73 is  PCI express to PCI bridge on a PC/104-PCI card. The 4I73 connects to the host CPU with a 5I71, a 6I71 or a Express card adapter and a standard PCIE one lane cable. The 4I73 can allow data acquisition and wireless peripheral cards to be placed in ideal locations, which may be at some distance from the host CPU. The 4I73 also allows testing of PC/104-PCI cards without powering down the host. The 4I73 can be located up to 7 meters from the host computer. The 4I73 has a built in 3.3V power supply and can provide up to 2.5 Amps of 3.3V power to the remote peripheral stack so that only a single 5V power supply is required. On card high side switching is provided for externally supplied +12 abd -12V.

   MANUAL


5I70 PCI-PCI Express bridge


5I70 picture
The 5I70 is a PCI to one lane PCI Express bridge on a standard PCI card. The 5I70 can be used in conjunction with the 4I70 in order to access PC/104-PLUS peripheral cards up to 15 Meters from a standard desktop PC.  The 5I70 uses a one lane Infiniband cable to connect between the 5I70 and the remote card.





5I71 PCI-PCI Express bridge

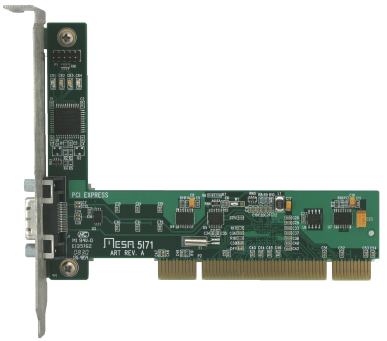

5I71 picture
The 5I71 is a PCI to one lane PCI Express bridge  interface on a standard PCI card. The 5I71 uses the standard one lane PCIe cable and can be used in conjunction with the 4I73 in order to access PC/104-PLUS peripheral cards up to 15 Meters from a standard desktop PC. The 5I71 is also compatible with the 3X20, allowing 144 points of high speed FPGA I/O to be remotely located from the host PC.




6I71 PCI Express cable adapter


low profile 6I71
The 6I71 is a one lane PCIexpress (PCIe) cable adapter that allows remote devices that use the standard one lane PCIe cable interface to be  remotely located from the host PC. The 6I71 has a PCIe redriver and supports cable lengths up to 7 meters. The 6I71 has selectable equalization and transmit de-emphasis options and 4 status LEDs. The 6I71 is compatible with Mesas 4I73 and 3X20. Versions with standard height and low profile bracket are available (low profile version shown here).




MANUAL


PCIEEXS and PCIEEXN PCI Express cable extender


pcie cable extender
The PCIEEX is a one lane PCI Express cable extender. It can be used for cable length extention and through panel applications. The  PCIEEXS swaps the XMIT and RECV pair so must be used in situations with 2 cables and 1 extender. The PCIEEXN does not swap the XMIT and RECV pairs so can be used in situations with 2 extenders and 3 cables.



4P20 PC/104-PLUS  Power Over Ethernet card

4P20 picture

The MESA 4P20 is a 11W PoE power supply for PC/104 and PC/104-PLUS systems. The 4P20 allows a remote PC/104 system to get power and high speed communication from a single CAT5 cable up to 100 Meters long. The 4P20 supplies 5V at up to 2A, +12V at up to 200 mA and -12 at up to 100 mA via the bus connectors to the PC/104 stack. The PoE connection is done as a feed-through tap so the Ethernet connection can be routed to a local Ethernet endpoint. Auxiliary power inputs are provided to allow external 18 to 60 VDC sources to power the 4P20 if PoE is not available. PC/104 power is electrically isolated from PoE or auxiliary source power.


DATASHEET --- MANUAL


ISIO Low cost isolated I/O driven by printer port


The MESA ISIO is a low cost isolated I/O card that is driven from a standard printer port. The ISIO has 4 relay or 4 transistor outputs and 8  opto-isolated inputs. Relay outputs are rated at 2A, 24VDC or 1A, 120VAC.  Transistor outputs are rated at 1A, 48VDC. Inputs are 10 to 48VDC.  All isolated I/O uses screw terminals.  Outputs are disabled at powerup until a specific 12  bit code is sent to the ISIO. This prevents inadvertant output activation during power-up. Up to 4 ISIO modules can share a single printer port. ISIO outputs can be latched so that accessing other ISIO modules on a shared port does not effect the output state .  The ISIO uses a PC/104 compatible form factor but does not use the PC/104 bus. Since it uses the parallel port, the ISIO can be located as far as 10 feet from the controlling CPU.




DATASHEET --- MANUAL---SUPPORT SOFTWARE



USB-JTAG: Low cost USB JTAG PROGRAMMER / MISC-IO

USB-JTAG picture
The MESA USB-JTAG is a low cost USB-JTAG programmer. All JTAG I/O logic and memory is implemented in the FPGA for flexibility and high performance. The JTAG interface supports shift rates from 250 KHz up to 48 MHz and will interface to 5V, 3.3V and 2.5V targets. USB-JTAG is USB bus powered so no awkward additional power supplies are needed. USB-JTAG can also be use as a general purpuse USB interfaced programmable I/O device. USB-JTAG is an open project with schematics, artwork, firmware, and operating software source code freely available. Software currently supports downloading bit files to Xilinx FPGAs and programming Xilinx CPLDs via SVF files. JTAG pinout is a superset of EJTAG with extra pins (EJTAG is central 14 pins of 26 pin JTAG header)




DATASHEET --- MANUAL---SUPPORT SOFTWARE
